Topic Content:

  • Steps To Follow During Board Practice

During board practice, the following steps must be strictly followed so as to achieve a very good and neat result.

1. Setting Paper on the Board:

To set your A3 paper on the board, do the following:

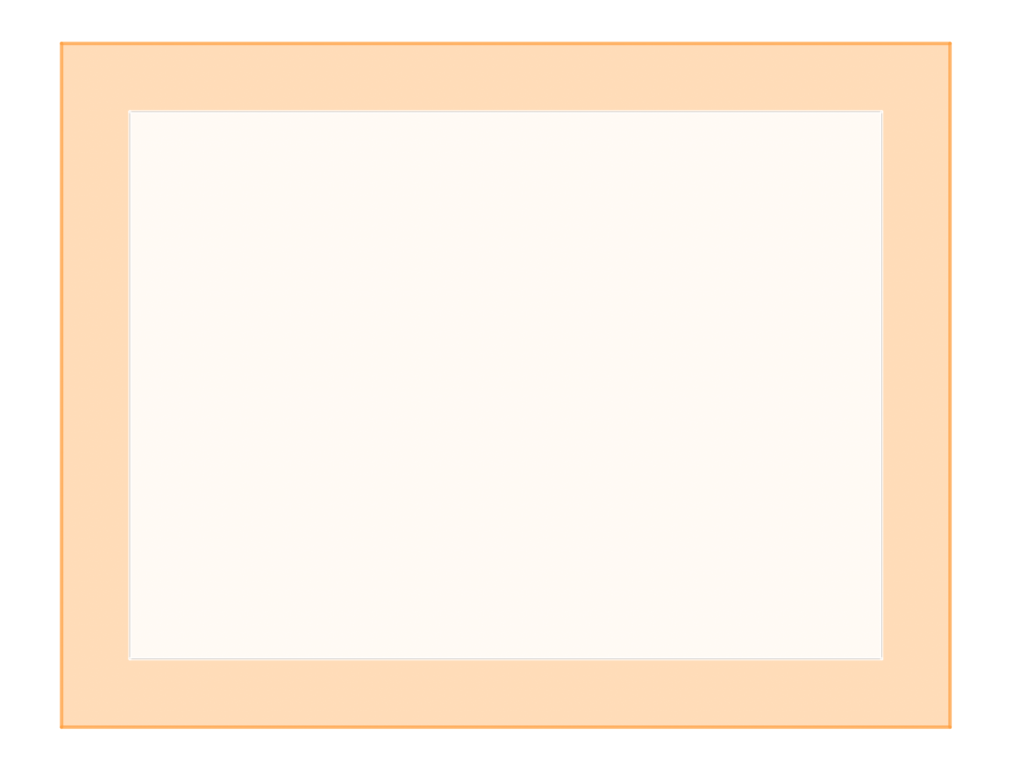

a) Put your A3 paper on the board, leaving equal space on all sides.

drawing board and paper

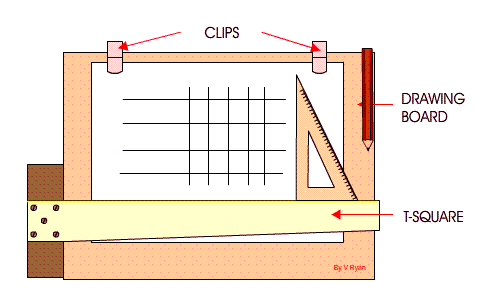

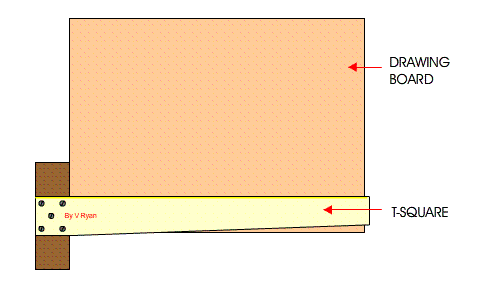

b) Put the Tee-square on the paper with the stock aligned with the board on the left side. There must be no gaps otherwise the paper will not be set up correctly and drawing accurate horizontal and vertical lines will be impossible.

draw1a

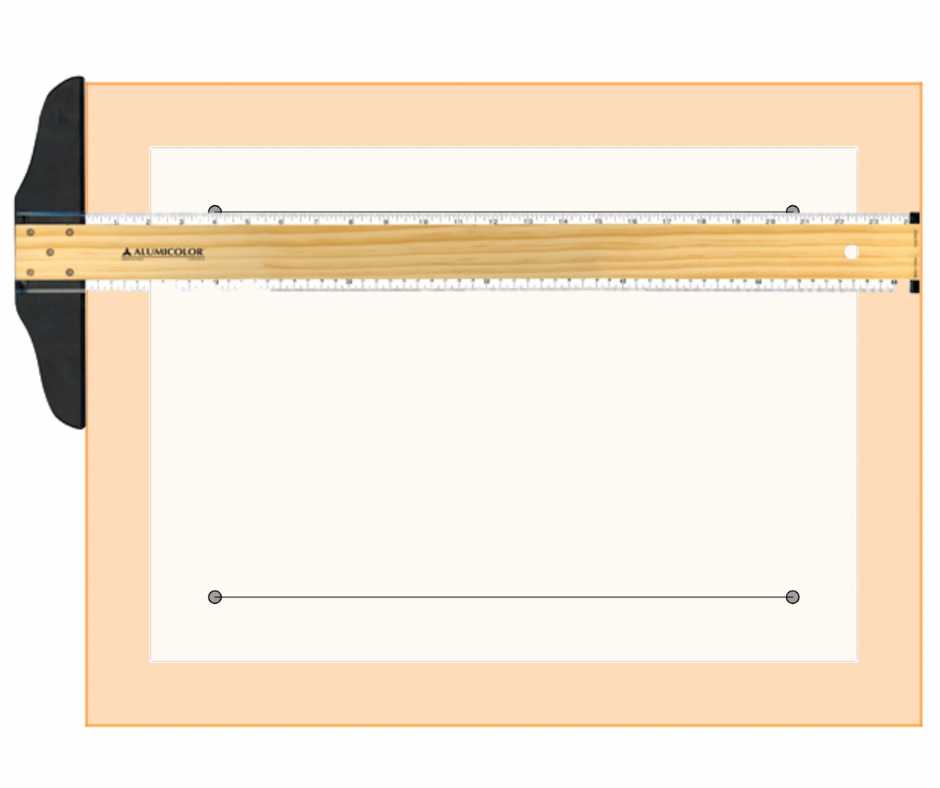

c) Adjust the paper to align with the blade of the Tee square.
