  • Common Drawing Materials

1. Drawing paper:

The paper commonly used for technical drawing is A3 paper. The standard size of drawing sheets are:

A0: 841 mm (width) × 1189 mm (height)
A1: 594 mm (width) × 841 mm (height)
A2: 420 mm (width) × 594 mm (height)
A3: 297 mm (width) × 420 mm (height)
A4: 210 mm (width) × 297 mm (height)
A5: 148 mm (width) × 210 mm (height)

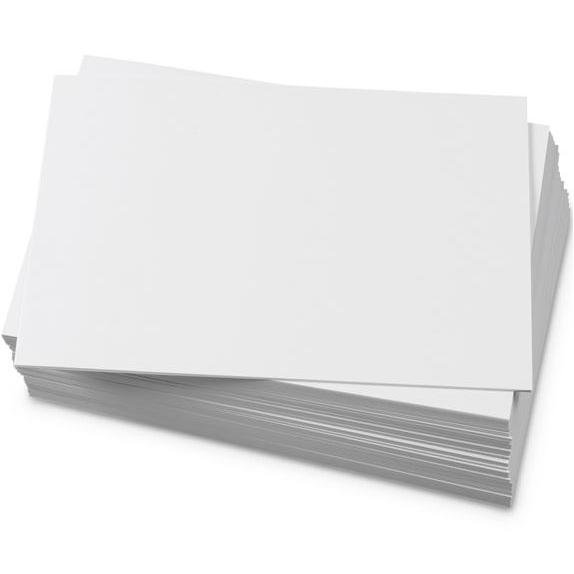

drawing paper
A3 Drawing Paper.

2. Pencils:
