Application & Uses of Chain Drives

Lesson Progress

0% Complete

The application of chain drives can be seen in the following:

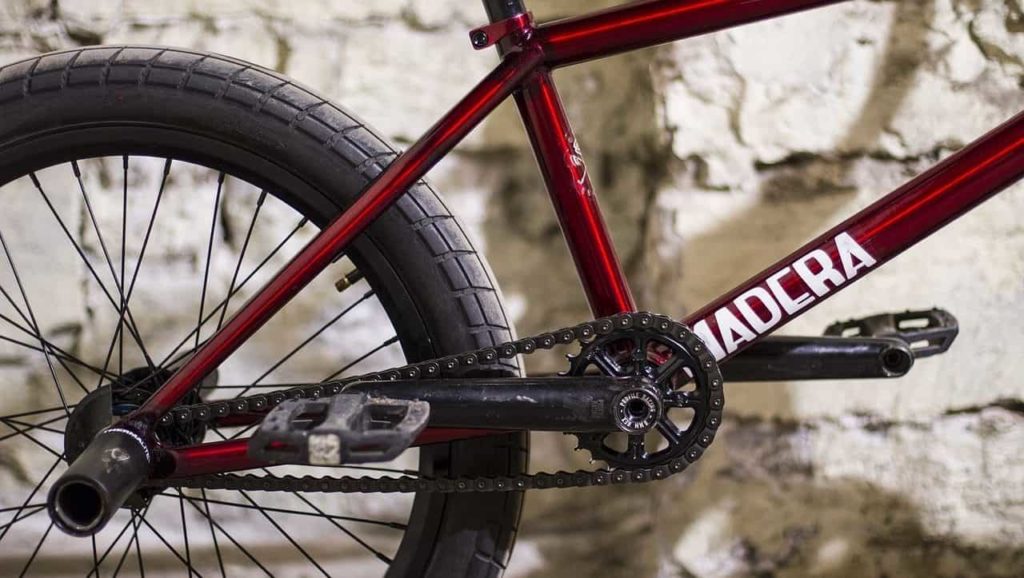

i. Bicycle wheel

chain drive — _{Bicycle wheel.}

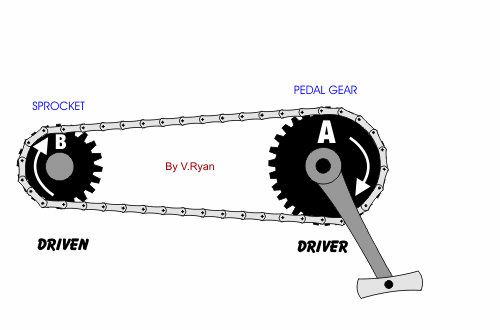

chain drive bicycle

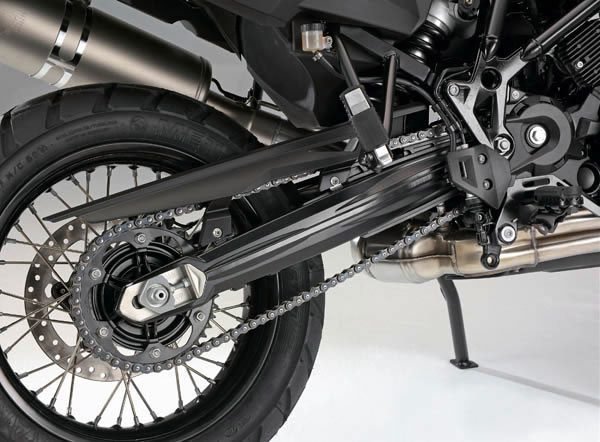

ii. Motorcycle

chain drive motorcycle — _{Chain Drive of a Motorcycle.}

iii. Forklift

Fork Lift — _{Fork Lift.}

Fork Lift — _{Fork Lift- Chain Drive.}

iv. Timing Chain in a Vehicle

Car Timing Chain. — _{Car Timing Chain.}

v. Agriculture Machinery

Agriculture Machinery chain drive — _{Chain Drive Tractor Rotation Wheel.}

vi. Building Construction

bull dozer chain drive — _{Chain Drive of a Bulldozer.}

vii. Conveyors

chain-drive conveyor roller — _{Chain Drive Conveyor Roller.}
