In the study of isosceles and equilateral triangles and parallelograms, we shall recall some of the concepts discussed under congruent triangles.

Isosceles Triangle:

Definition: An Isosceles triangle has two equal sides. The third side is called the base. The equal sides meet at the vertex. The angle at the vertex is called the vertical angle.

The Base angles of an Isosceles Triangle are Equal.

Screenshot 2022 05 16 at 21.44.02

Properties of Isosceles Triangle:

(i). Two sides equal |BA| = |CA|

(ii). Two angles equal \( \scriptsize \hat{ABD} = \hat{ACD} \)

(iii). The bisector of the vertical angle meets the base at a right angle

(iv). The bisector of the vertical angle bisects the base, (i.e. |BD| = |DC| ).

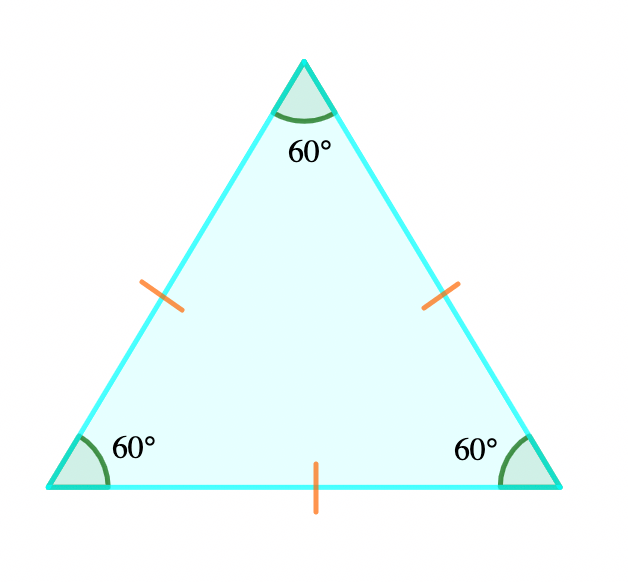

Equilateral Triangle:

This is a triangle with three equal sides or it is a triangle with three angles equal (i.e. 60º).

equilateral triangle

Note that an equilateral triangle is a special Isosceles triangle because all the properties of an Isosceles triangle are true for an equilateral triangle.

Properties of Equilateral Triangle:

(i). All the three sides are equal (i.e. all angles equal)

(ii). Angles are 60o each.

(iii). It is a special Isosceles triangle

Evaluation 1

For each of the diagrams below, name the triangle which is congruent to ∆XYZ giving the letters in the correct order. In each case state the condition of Congruency using the abbreviations RHS, SSS, SAS, ASA, or AAS.

(i)

Screenshot 2022 05 17 at 05.55.21

Solution: \(\scriptsize \Delta ZDX \equiv \Delta XYZ \: (AAS)\)

(ii)

Screenshot 2022 05 16 at 22.15.24

Solution: \(\scriptsize \Delta XLK \equiv \Delta XYZ \: (SAS)\)

(iii)

Screenshot 2022 05 16 at 22.25.00

Solution: \(\scriptsize \Delta TYS \equiv \Delta XYZ \: (SAS)\)

(iii)

Screenshot 2022 05 17 at 05.59.09

Solution: \(\scriptsize \Delta NMZ \equiv \Delta XYZ \: (SAS)\)

Evaluation 2

In the diagram below, DEF is a triangle with EDF = 2Xº.
\( \scriptsize \bar{DE} \: and \: \bar{DF}\)are produced to G and H respectively, so that |EF| = |EG| = |FH|
\(\scriptsize \bar{EH} \: and \: \bar{FG}\)intersect at K. Show that EKG = 90º – xº

Screenshot 2022 05 17 at 00.19.42

Solution

Screenshot 2022 05 17 at 00.34.49

EFG = EGF = a (equal angles of Isosceles triangle)

FEH = FHE = b (equal angles of Isosceles triangle)

DFE = 2bº (ext. Angle of ∆ EFH)

DEF = 2aº (ext. Angle of ∆ EGF)

Consider ∆EKG

Screenshot 2022 05 17 at 01.06.09

2a + b = EKG + a (ext. Angle of ∆ EKG)

EKG + a = 2a + b

EKG = 2a – a + b

EKG = (a + b)º

Consider ∆DEF

2xº + 2aº + 2bº = 180º (sum of angles in a triangle)

i.e. 2(x + a + b) = 180º

x + a + b = \( \frac{180^o}{2} \)

⇒  x + a + b = 90º

⇒ a + b = 90º – xº

But we know EKG = (a + b)

EKG = 90º – xº

Evaluation 3

In the diagram below, |AD| = |DB| = |BC|
and \(\scriptsize \hat{ADB} = \hat{BDC} = 62^o \)
Calculate \(\scriptsize \hat{ABC} \)

Q3 ss3 maths 1 e1617971343567

Solution:

Q4 sss3 3rd term e1617978392858
\(\scriptsize \hat{ABC} =\hat{ABD} \: + \: \hat{DBC}\)

\(\scriptsize \hat{DAB} = \hat{ABD} \) (Equal angles of Isosceles triangle)

If \(\scriptsize \hat{DAB} \: and \: \hat{ABD} = x \\ \scriptsize \: then \: \hat{ABD} \: + \: \hat{DAB} = 2x \)

\(\scriptsize 180 = 2x \: + \: 62 \) (Sum of angles in an Isosceles triangle)

\( \scriptsize x = \normalsize \frac{180 \: – \: 62}{2} = \scriptsize 59^o\)

\(\scriptsize \therefore \scriptsize \hat{ABD} = 59^o\)

Consider \( \scriptsize \Delta DBC \) which is an iscoceles triangle

Therefore, \(\scriptsize \hat{BCD} = \hat{CDB} = 62^o \)

\(\scriptsize 180 = \hat{DBC}\: + \: \hat{BCD}\: + \: \hat{CDB} \)

\( \scriptsize \therefore \hat{DBC} = 180 \: – \: (62 \: + \:62) \) (Sum of angles in a triangle)

\( \scriptsize \therefore \hat{DBC} = 180 \: – \: 124 = 56 \)

\(\scriptsize \hat{ABC} =\hat{ABD} \: + \: \hat{DBC}\)

\(\scriptsize \hat{ABC} = 59 \: + \: 56 \)

⇒ \(\scriptsize \hat{ABC} = 115^o \)

Evaluation 4

From the diagram below, ⧸PR⧸ = ⧸PQ⧸, ⧸QS⧸ = ⧸QR⧸ and RPQ = 40º. Calculate PQS. (WAEC)

kofa ss1 maths

Solution:

\(\scriptsize \hat{PRQ} = \hat{PQR} \) (Base angles of Isosceles triangle)

If \(\scriptsize \hat{PRQ} \: and \: \hat{PQR} = x \\ \scriptsize \: then \: \hat{PRQ} \: + \: \hat{PQR} = 2x \)

\(\scriptsize 180 = 2x \: + \: 40 \) (Sum of angles in an Isosceles triangle)

\( \scriptsize x = \normalsize \frac{180 \: – \: 40}{2} = \scriptsize 70^o\)

\(\scriptsize \therefore \scriptsize \hat{PRQ} = 70^o\)

\(\scriptsize \scriptsize \hat{PRQ} = \hat{RSQ}\) (Equal angles of Isosceles triangle)

⇒ \(\scriptsize \hat{RSQ}\) = 70º

but \(\scriptsize \hat{RSQ} = \hat{SPQ} \: + \: \hat{PQS} \) (Exterior angle of a triangle)

⇒ \( \scriptsize 70^o = 40^o \: + \: \hat{PQS} \)

\( \scriptsize \hat{PQS} = 70^o \: – \: 40^o \)

\( \scriptsize \hat{PQS} = 30^o \)
