Circle Geometry deals with the measurements and relationships of lines and angles of a circle.

Let’s recap what we have learnt previously:

A circle is the locus of points in a plane that are a fixed distance (the radius) from a fixed point (the centre).

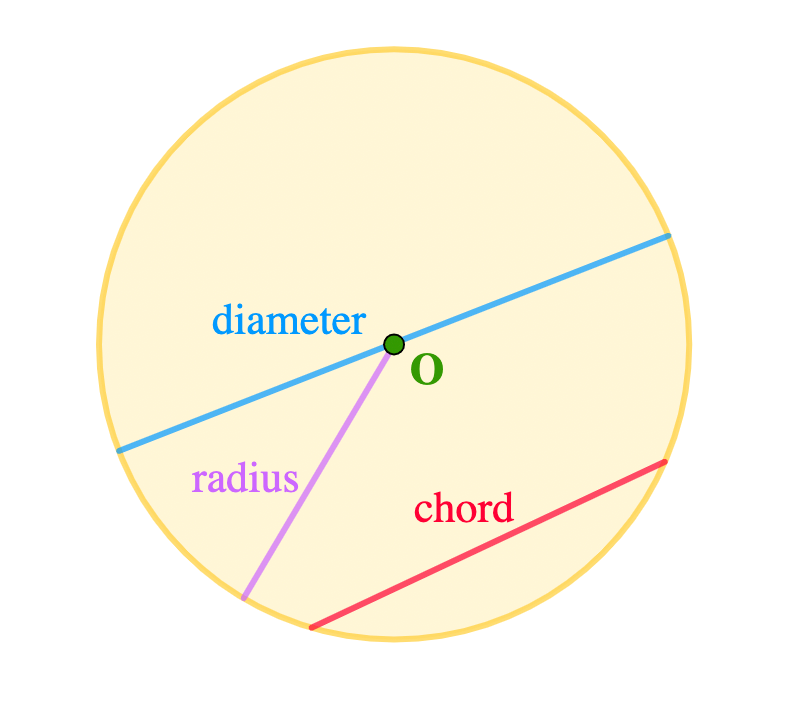

Screenshot 2022 06 05 at 15.42.00

Any line extending from the centre O to any point on the circumference or bounding surface is called a radius. Any two radii have the same length.

Note: The plural form of radius is radii

The chord of a circle is defined as the line segment joining any two points on the circumference of the circle.

A diameter is a chord that passes through the centre of the circle and divides the circle into two equal parts. A diameter consists of two radii joined at their endpoints, therefore, the length of a diameter is twice the radius.

If a chord is not a diameter it divides the circle into two unequal parts, the major segment and the minor segment.

Screenshot 2022 06 06 at 06.02.40
Chord PQ divides the circle into major & minor segments.

Properties of the Chord of a Circle:

Some important properties of chords of a circle are given below;

(i) A straight line which joins the centre of a circle to the midpoint of a chord, that is not a diameter, is perpendicular to the chord.

(ii) A chord when extended infinitely on both sides becomes a secant

(iii) A chord that is not a diameter divides the circle into two segments, the major segment and the minor segment.

(iv) Chords of a circle, equidistant from the centre of the circle are equal.
