Sign Convention

Topic Content:

Sign convention is used to distinguish between image positions when they are in front of a curved mirror or behind it i.e. when real or virtual images are formed.

There are two types of sign conventions namely:

1. New Cartesian (NC)
2. Real-is-Positive (RIP)

The New Cartesian sign convention is easier to use because it is similar to using an x-y coordinate axis.

Examples 4.7.1:

An object is placed 10 cm in front of a concave mirror whose radius of curvature is 12 cm. Calculate the position, nature and magnification of the image produced.

Solution



You are viewing an excerpt of this Topic. Subscribe Now to get Full Access to ALL this Subject’s Topics and Quizzes for this Term!

Click on the button “Subscribe Now” below for Full Access!

Subscribe Now

Note: If you have Already Subscribed and you are seeing this message, it means you are logged out. Please Log In using the Login Button Below to Carry on Studying!

Login

The same result is obtained irrespective of the convention used.

The image is:

• inverted
• real
• magnified

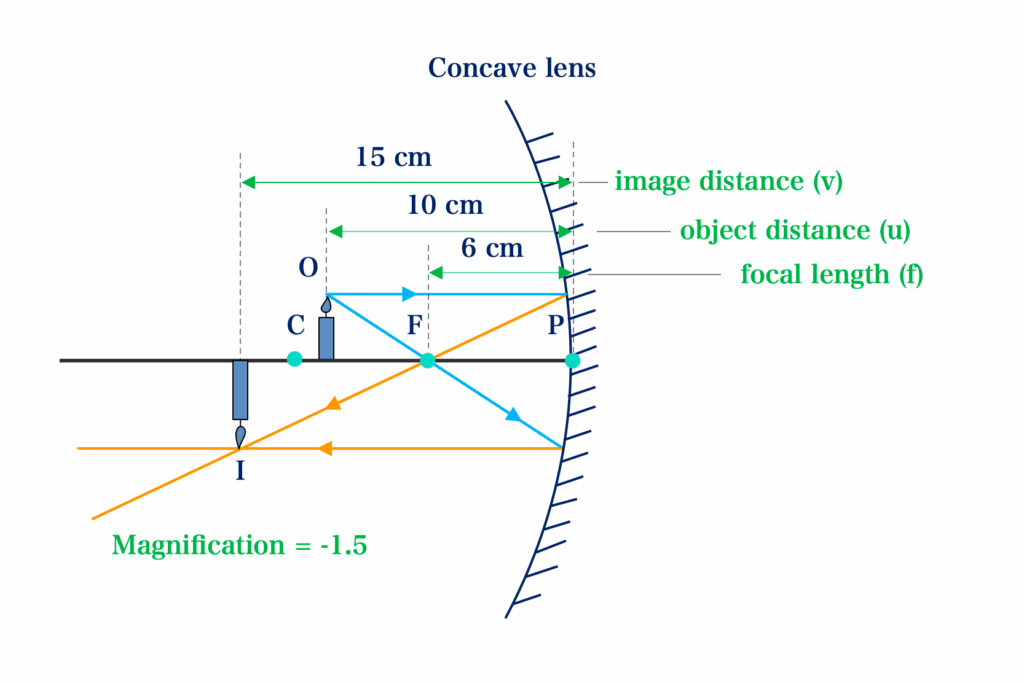

Magnification = -1.5. The negative sign tells us that the magnification is real and inverted, and 1.5 tells us that the image is 1.5 times larger than the object.

Examples 4.7.2:

An object, 6 cm in size, is placed at 30 cm in front of a concave mirror, of focal length 15 cm. At what distance from the mirror should a screen be placed in order to obtain a sharp image? Find the nature and size
