SS2: PHYSICS – 3RD TERM Refraction of Light through Lenses Construction of Ray Diagrams for a Convex Lens
Lesson 7, Topic 3
In Progress

Construction of Ray Diagrams for a Convex Lens

Lesson Progress
0% Complete

Topic Content:

  • Rules for Construction of Ray Diagrams for a Convex Lens (Converging Lens)
  • Images Formed at Different Positions by Convex Lens (Converging Lens)

Rules for Construction of Ray Diagrams for a Convex Lens:

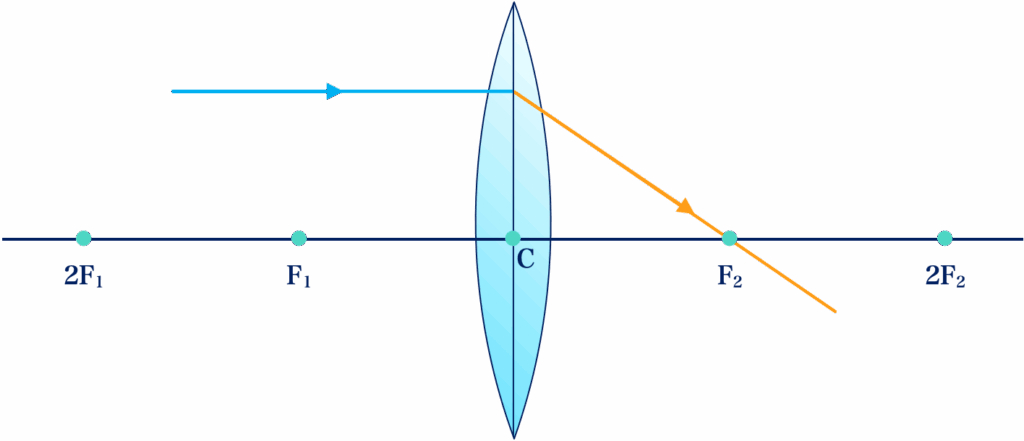

Rule 1: A ray of light parallel to the principal axis is refracted through the principal focus on the other side of the lens.

rule 1 convex lens

Rule 2: Any ray of light passing through the optical centre of a convex lens goes straight
